English: Case Overview
This hypothetical plate drawing includes counterbores, through holes, threaded holes and edge chamfers. The machining risk is not only making the holes, but keeping hole position, thread quality and burr control consistent across the batch.

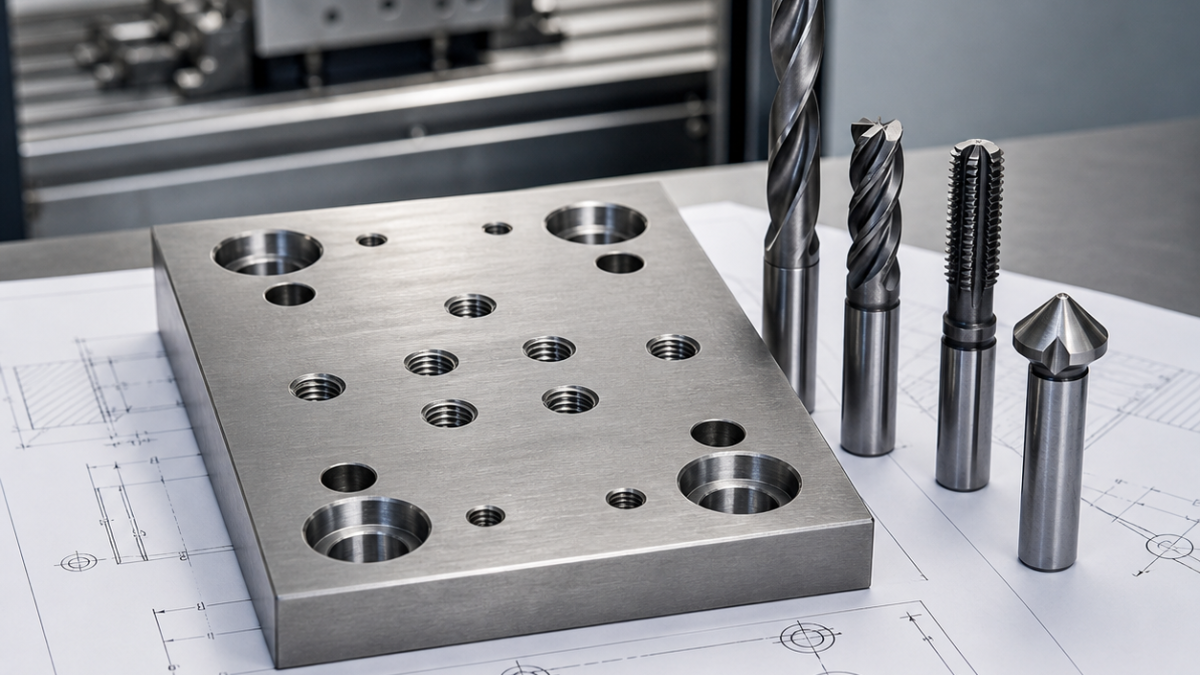

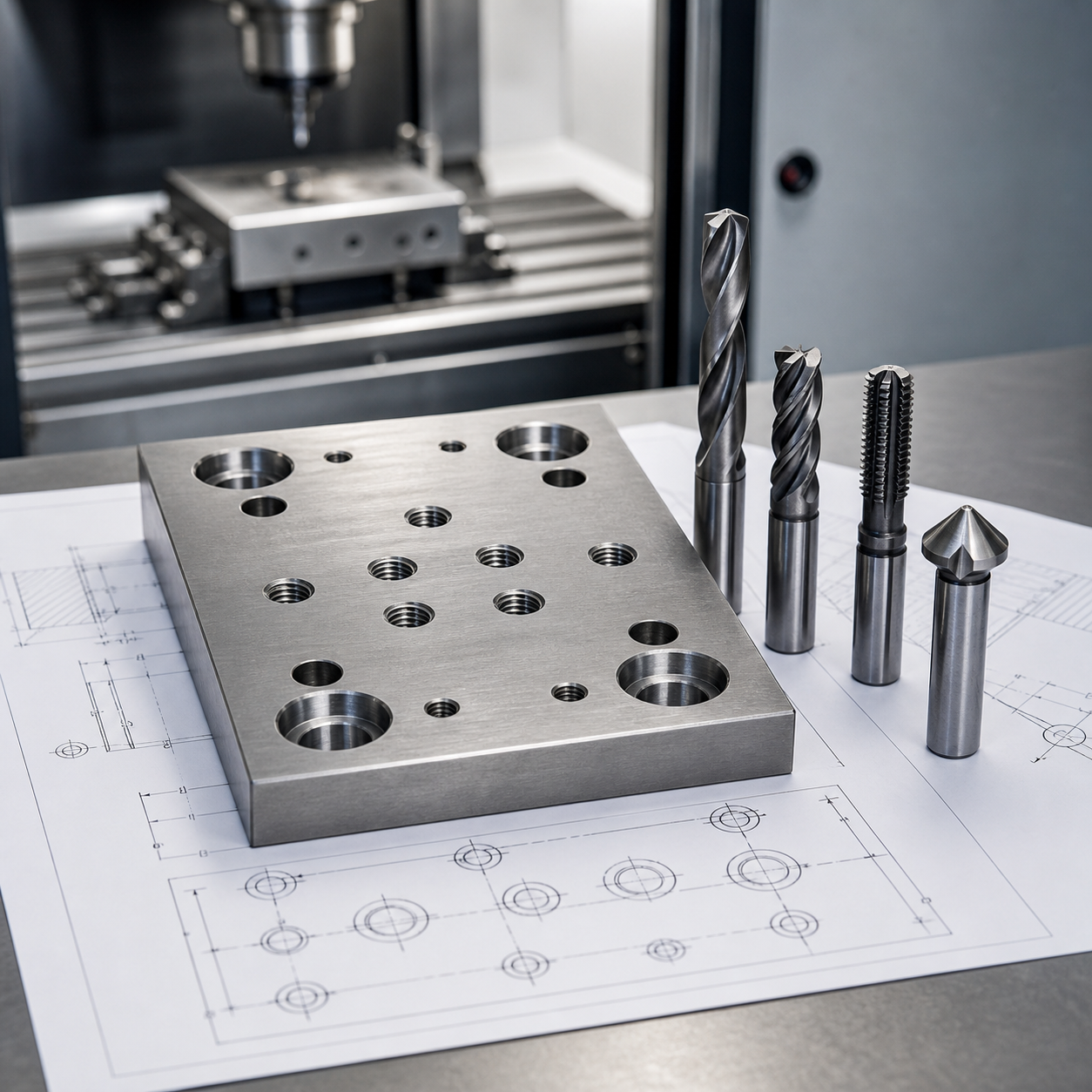

A practical tool list includes a spot drill or drill mill, carbide drills, an end mill for counterbore interpolation when needed, a thread mill for controlled threads, and a chamfer tool for entry and exit burrs. For mixed hole sizes, helical interpolation can reduce special tool requirements.
Recommended Operation Sequence
Face the plate if required, then spot the holes to stabilize drill entry. Drill pilot or final holes according to tolerance, interpolate counterbores if diameter flexibility is needed, then thread mill critical threaded holes. Chamfer both accessible edges to reduce manual deburring.
SEO Machining Takeaway
For plate drawings with many hole features, the tooling solution should group operations by feature type and inspection risk. Thread quality and burr control should be planned before the first part is cut.
中文：带沉孔和螺纹孔板件的 CNC 配刀方案
这个假设板件图纸包含沉孔、通孔、螺纹孔和边缘倒角。加工风险不只是把孔做出来，还包括孔位、螺纹质量和批量毛刺控制。
实用刀具方案包括点钻或钻铣刀、硬质合金钻头、用于沉孔插补的铣刀、用于高质量螺纹的螺纹铣刀，以及用于孔口和边缘毛刺控制的倒角刀。
Français : Cas d’usinage d’une plaque avec taraudages
Une plaque avec lamages et trous filetés exige une stratégie claire : pointage, perçage, interpolation des lamages, fraisage de filets et chanfreinage. La qualité du filet et le contrôle des bavures sont essentiels.
Русский: План обработки плиты с резьбовыми отверстиями
Для плиты с зенковками и резьбовыми отверстиями нужен план операций: центровка, сверление, интерполяция зенковок, резьбофрезерование и снятие фасок для контроля заусенцев.
FAQ
When is thread milling better than tapping? Thread milling is useful for blind holes, expensive parts, larger threads or difficult materials.
How can counterbore tools be reduced? Helical interpolation with an end mill can cover multiple counterbore diameters.
