English: Drawing Review and Tooling Plan

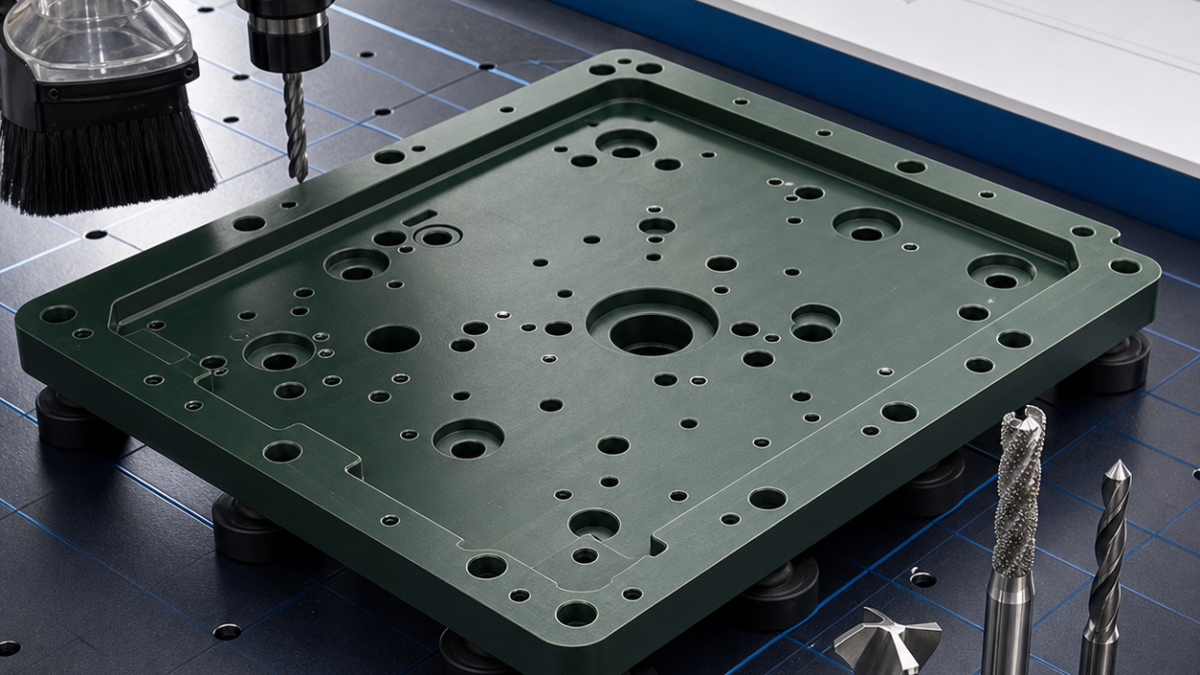

This practical planning article focuses on G10 FR-4 composite fixture plate CNC hole quality dust diamond tooling. The part drawing combines a flat reference face, dense dowel-hole pattern, counterbores, clearance holes, routed perimeter and edge chamfers. The process goal is to convert drawing requirements into a stable fixture, a short tool list, controlled cutting conditions and measurable inspection gates.
Drawing and datum review
The first step is to identify the true functional datums. For this part, the process should treat the flat reference face and dowel-hole coordinate system as the main reference. Nonfunctional stock should stay in place until the critical geometry is stable. This reduces the risk of chasing dimensions that move after unclamping.
Fixture and tool selection

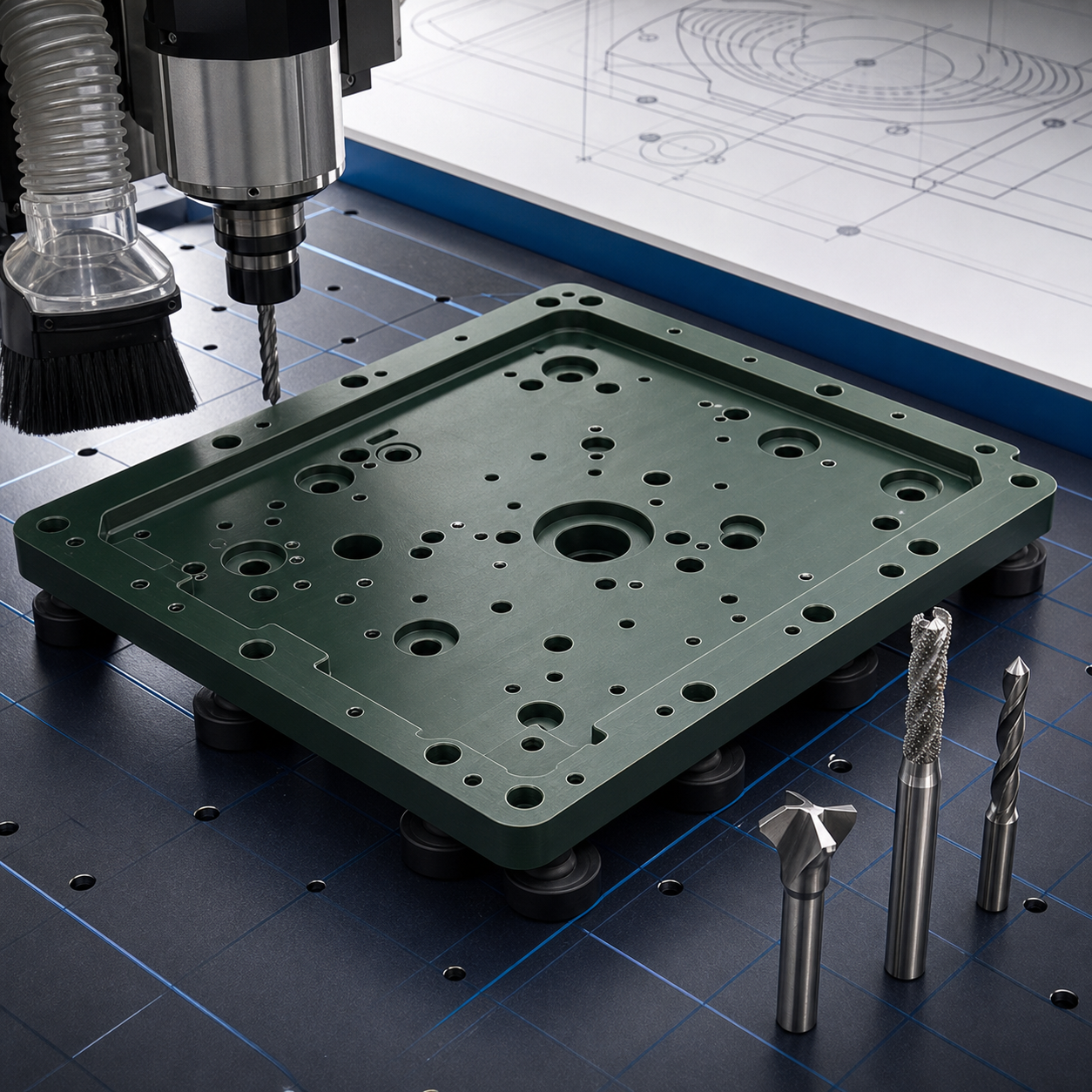

The fixture plan is to support the full sheet on a sacrificial vacuum fixture, add perimeter stops and keep tabs until the final contour pass. The recommended tooling is a compression-style diamond-coated router, sharp carbide drills, selected reamers, a flat counterbore cutter and a light chamfer tool. Keep tool reach short, verify holder runout and separate roughing tools from finishing tools. That separation protects the final surface from roughing wear and heat.
Starting parameters and sequence
Initial parameters should be conservative and based on the tool supplier’s grade data. Start with light radial engagement, steady chip evacuation and a documented tool-life limit. A reliable sequence is datum preparation, supported roughing, semi-finishing, critical holes or grooves, final surface finishing, deburring and inspection.
Inspection plan
Inspection should confirm datum-to-hole coordinates, pin-gauge fit, counterbore depth, entry and exit breakout, dust removal and final flatness. The useful SEO terms belong naturally here: G10 FR-4 composite fixture plate CNC hole quality dust diamond tooling, fixture method, tool selection, burr control, dimensional inspection and process stability.
中文：图纸解读与配刀方案
本文围绕 G10 FR-4 composite fixture plate CNC hole quality dust diamond tooling 展开。零件特征包括a flat reference face, dense dowel-hole pattern, counterbores, clearance holes, routed perimeter and edge chamfers。文章重点不是泛泛介绍 CNC 加工，而是把图纸要求转化为夹具、配刀、参数、工序和检测方案。
建议以the flat reference face and dowel-hole coordinate system作为核心基准，夹具方案为：support the full sheet on a sacrificial vacuum fixture, add perimeter stops and keep tabs until the final contour pass。配刀可采用：a compression-style diamond-coated router, sharp carbide drills, selected reamers, a flat counterbore cutter and a light chamfer tool。粗加工、半精加工和精加工应分开，关键尺寸在零件刚性最稳定的状态下完成。检测应确认datum-to-hole coordinates, pin-gauge fit, counterbore depth, entry and exit breakout, dust removal and final flatness，并重点关注毛刺、变形、刀具磨损和重复装夹误差。
Español: revision del plano y seleccion de herramientas
Este caso se centra en la busqueda especifica G10 FR-4 composite fixture plate CNC hole quality dust diamond tooling. La pieza incluye a flat reference face, dense dowel-hole pattern, counterbores, clearance holes, routed perimeter and edge chamfers. El plan conecta plano, referencia, utillaje, seleccion de herramienta, control de rebabas e inspeccion dimensional.
Français : lecture du plan et choix des outils
Ce cas vise la recherche precise G10 FR-4 composite fixture plate CNC hole quality dust diamond tooling. La piece comporte a flat reference face, dense dowel-hole pattern, counterbores, clearance holes, routed perimeter and edge chamfers. La gamme relie les references du plan, le bridage, les outils, les conditions de coupe, l ebavurage et le controle.
Русский: анализ чертежа и выбор инструмента
Этот пример ориентирован на точный запрос G10 FR-4 composite fixture plate CNC hole quality dust diamond tooling. Деталь включает a flat reference face, dense dowel-hole pattern, counterbores, clearance holes, routed perimeter and edge chamfers. План связывает чертежные базы, приспособление, выбор инструмента, режимы, снятие заусенцев и контроль размеров.
FAQ
Why use a specific material and part in the title?
A specific material, part and machining problem matches how engineers search for process help and makes the article more useful.
Why keep inspection in the article?
Inspection details make the content more useful and support SEO because they show process capability, not only tool names.
